Precision case forming automation

Engineered for flexibility and performance
Meta® 150

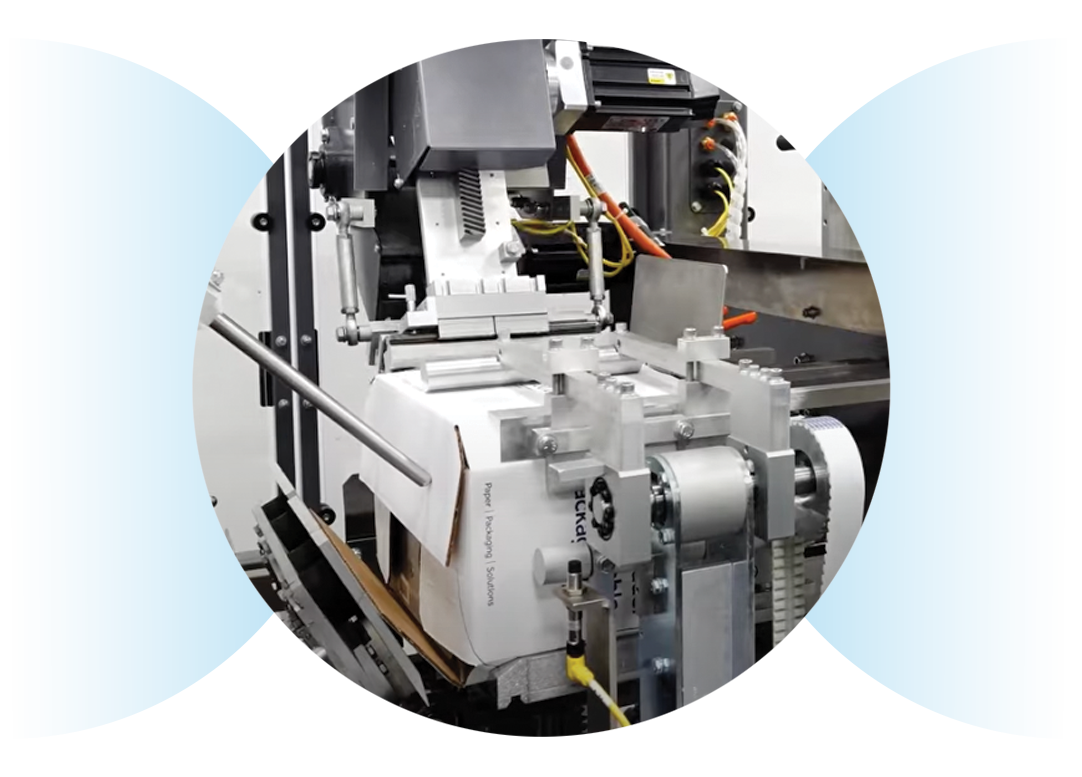

With Smurfit Westrock’s specialized mandrel-forming technology, die-cut blanks are precisely formed into cases around a fixed mandrel, minimizing case-skew and maximizing structural integrity.

This precision enables better box performance on your production line and through your distribution system.


Minimize case-skew, maximize structural integrity
Optimize storage footprint and transportation costs
Easily adapt to changing capacity needs
Key Features and Benefits
  • Flexible: All models have the capability to run four, five, six, seven or eight-sided cases.
  • Efficient: With quick changeovers between formats and sizes, uptime can be optimized as well as overall equipment efficiency.
  • Responsible: Precision mandrel-forming can improve box compression (BCT) compared to current structures (up to 40% vs. RSC) and can optimize material usage.
Meta® Portfolio
  Meta 150 Meta 170 Meta LS Meta LS 4S Meta Duo
  Meta® 150 Meta® 170 Meta® LS Meta® LS 4S Meta® Duo

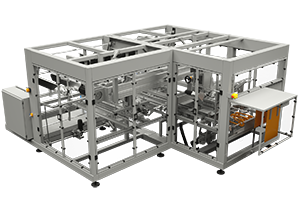

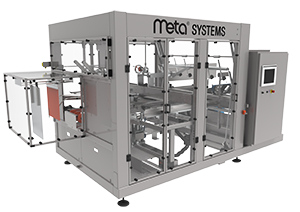

Description With multiple production options and efficient production speeds, Meta® 150 & Meta® 170 models provide quick changeovers for varied packaging demands and speeds up to 55 cases per minute*. Meta® LS and Meta® LS 4S also create customizable and efficient packaging designed for multiple channels and products. With speeds ranging from up to 18-25 cases per minute*, these machines are suitable for operations that require lower speeds. Meta® Duo efficiently transitions between HSCs, one and two-piece shelf-ready placement designs and SIOCs, helping you meet various retailer and e-tailer requirements from a single, small footprint machine.
Min. blank size 5 7/8" x 27 1/2"
(150mm x 700mm)		 5 7/8" x 27 1/2"
(150mm x 700mm)		 10" x 23”
(254mm x 584mm)		 10" x 23”
(254mm x 584mm)		 5 7/8" x 27 1/2" (1-pc design)
5 7/8" x 27 1/2" (2-pc design)
Max. blank size 27 1/2" x 61"
(700mm x 1735mm)		 27 1/2" x 68"
(700mm x 1735mm)		 23" x 60”
(585mm x 1524mm)		 23" x 60”
(585mm x 1524mm)		 27 1/2" x 61" (1-pc design)
27 1/2" x 61” (2-pc design)
Speed – single pc* Up to 55 cases/min Up to 45 cases/min Up to 18 cases/min Up to 25 cases/min Up to 45 cases/min
Speed – 2pc* — — — — Up to 35 cases/min
  *Actual machine speed dependent on box size, shape, and material. Final machine speed to be determined.
Industries
Meta® mandrel case forming technology for beverage industry
Beverage
Meta® mandrel case forming technology for fresh food packaging
Fresh Food
Meta® mandrel case forming technology for meat and dairy industries
Meat & Dairy
Meta® mandrel case forming technology for processed food industry
Processed Food
